Compressed Air Energy Storage (CAES): Definition + Examples

As renewable energy sources like wind and solar grow, the need for efficient energy storage systems becomes critical to ensure a steady, reliable energy supply.

One of the innovative solutions gaining traction is Compressed Air Energy Storage (CAES).

CAES allows us to store surplus energy generated from renewables for later use, helping to smooth out the supply-demand balance in energy grids.

In this guide, we’ll dive into how CAES works, its benefits, challenges, and its potential future in the renewable energy landscape.

What is Compressed Air Energy Storage (CAES)?

Compressed Air Energy Storage is a technology that stores energy by using electricity to compress air and store it in large underground caverns or tanks.

When energy is needed, the compressed air is released, expanded, and heated to drive a turbine, which generates electricity.

Unlike batteries, which store energy in chemical form, CAES stores energy mechanically.

It is one of the large-scale energy storage systems used to address the intermittency issues of renewable energy sources, particularly wind and solar power.

How Does Compressed Air Energy Storage Work?

The CAES process consists of two main phases: charging (compression) and discharging (expansion).

1. Compression (Charging Phase):

Energy Input: When surplus electricity is available (e.g., during peak wind or solar production times), the energy is used to run an electric motor that powers an air compressor.

Air Compression: The compressor forces ambient air into underground storage, such as salt caverns, aquifers, or steel tanks. This air is compressed to high pressures (up to 100 times atmospheric pressure), converting electrical energy into potential energy in the form of compressed air.

2. Storage:

Underground Caverns or Tanks: The compressed air is stored in large-scale, airtight underground caverns or specialized tanks. Salt caverns are commonly used due to their ability to withstand the high pressures needed for CAES.

3. Expansion (Discharging Phase):

Energy Release: When there is high energy demand, the compressed air is released from storage. The air is heated (sometimes using natural gas) and then allowed to expand.

Turbine Generation: As the compressed air expands, it drives a turbine connected to a generator, producing electricity. The stored energy is thus converted back into electrical power, ready for distribution to the grid.

The Role of Heat in CAES

When air is compressed, it heats up—a process called adiabatic compression. In a typical CAES system, some of this heat is lost, and external energy (usually natural gas) is used to reheat the air during the expansion phase to prevent the air from freezing as it expands.

However, advanced CAES systems, known as adiabatic CAES, capture and store the heat generated during compression, so that it can be used later in the expansion phase, reducing or eliminating the need for fossil fuels.

This significantly improves efficiency and reduces emissions.

Types of CAES Systems

There are two main types of CAES systems, each with slightly different approaches:

1. Diabatic CAES:

Process: This is the traditional form of CAES. In a diabatic system, the heat generated during compression is released into the atmosphere, and natural gas is burned to reheat the air during the expansion phase.

Efficiency: Diabatic CAES has lower efficiency (about 40-50%) because of the energy losses associated with heat dissipation and the need for natural gas.

2. Adiabatic CAES:

Process: Adiabatic CAES captures the heat generated during compression and stores it for use in the expansion phase, eliminating the need for external fuel sources like natural gas.

Efficiency: This system is more efficient (potentially 70% or higher) and offers a more environmentally friendly option, as it reduces reliance on fossil fuels.

Advantages of Compressed Air Energy Storage (CAES)

1. Large-Scale Storage: CAES systems are capable of storing vast amounts of energy, making them ideal for grid-scale applications. They are especially useful in combination with wind farms, where large quantities of excess energy may be generated during windy periods.

2. Long-Term Storage: CAES systems can store energy for extended periods (from hours to days), which is crucial for smoothing out the fluctuations of intermittent renewable energy sources.

3. Reduced Fossil Fuel Use: In advanced adiabatic systems, CAES can minimize or eliminate the need for natural gas to reheat the air, reducing greenhouse gas emissions.

4. Grid Stability: CAES contributes to grid reliability by providing backup energy during peak demand periods or when renewable sources aren’t generating power (e.g., calm days for wind turbines or cloudy days for solar panels).

5. Scalability: Unlike some battery systems that are limited in size, CAES can be scaled up relatively easily, making it a good solution for utility companies looking for large-scale energy storage.

Challenges and Limitations of CAES

1. Geographical Requirements: One of the main challenges of CAES is that it often requires specific geological formations, such as salt caverns or aquifers, for storing compressed air. This limits its application to regions with suitable underground storage options.

2. Efficiency: Traditional CAES systems (diabatic) have relatively low efficiency (around 40-50%) due to heat losses during compression and the need for natural gas to reheat the air during expansion. While adiabatic CAES systems are more efficient, they are still in the developmental stages.

3. Cost: Building and maintaining a CAES system, particularly the large-scale caverns and infrastructure needed for air compression and expansion, can be expensive.

4. Dependency on Natural Gas: Traditional CAES systems rely on natural gas for the reheating phase, which can undermine their environmental benefits. While adiabatic systems aim to address this, most existing CAES plants still use natural gas.

Notable CAES Projects

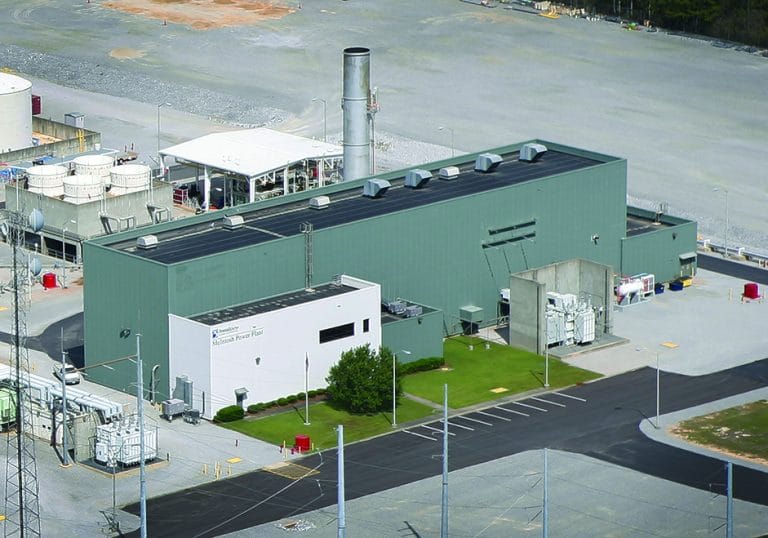

McIntosh Plant, Alabama (USA): This is one of the most well-known CAES projects in the world. It has been operational since 1991 and stores compressed air in salt caverns, providing 110 MW of energy storage capacity. It uses a diabatic CAES system.

Huntorf Plant, Germany: Built in 1978, this was the first commercial CAES plant and is still operational today. It has a capacity of 290 MW and uses a diabatic CAES system.

Advanced CAES Projects: Several new adiabatic CAES projects are under development across Europe and the U.S., as the demand for more efficient, renewable energy storage solutions grows.

The Future of CAES

As renewable energy adoption continues to accelerate, CAES is poised to play a vital role in large-scale energy storage.

While battery technologies like lithium-ion are well-suited for short-term storage, CAES offers a more viable solution for long-duration energy storage, particularly for grid-scale applications.

Improvements in CAES technology, especially the development of more efficient adiabatic systems, could make this technology even more competitive with other forms of energy storage.

Additionally, research into alternative storage mediums, like compressed carbon dioxide, is being explored as a way to enhance efficiency and further reduce emissions.
